Plaats van herkomst: | Shenzhen, China |
---|---|
Merknaam: | J&R |
Certificering: | CE, FCC, RoHS, ISO9001 |
Modelnummer: | Jr210-Sc |
Min. bestelaantal: | 1 stuk |
Prijs: | US$249-US$359 |
Verpakking Details: | J&R standaardverpakking, parelkatoen, karton |
Levertijd: | 3-7 werkdagen na betaling |
Betalingscondities: | L/C, T/T, Western Union, Paypal |
Levering vermogen: | 10000PCS per maand |
grootte: | 300*180*161 (mm) | Kleur: | Rood of Aangepast |
---|---|---|---|
Materiaal: | Koudgewalst Staal | Functie: | Mededeling |
Installatie: | muursteun | Belvolume: | 90~95dB (A) bij een afstand van 1 m |
Temperatuur: | Het werken: -30°C aan +65°C | De Classificatie van de toegangsbescherming: | IP54-IP65 |
Garantie: | 2 jaar | Netto Gewicht: | 4 kg |
Hoog licht: | SIP2.0 de autotelefoon van de Wijzerplaatnoodsituatie,65VDC de autotelefoon van de Wijzerplaatnoodsituatie,ISO9001 PoE Openluchtnoodsituatietelefoon |
﹄Product Description﹃

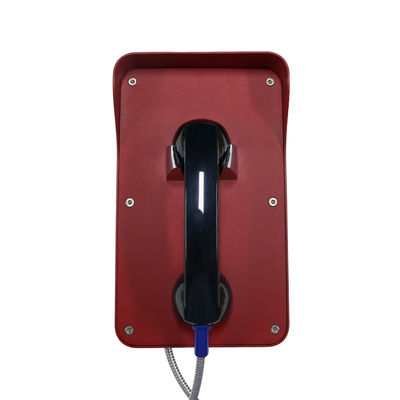

JR210-1B RED Outdoor emergency swimming pool phone with vandal-proof handset
Handset Telephone,One button for speed dial,Cold-rolled steel body,Red color(other colour on demand),
Unit size:300*180*161(mm)
Housed in a anti-vandal cold-rolled steel enclosure,wall-mounting
Analogue Version | |
Power Supply | From the analogue telephone network |
Supply Voltage | 24 VDC to 65 VDC |
Supply Current | 20 mA DC to 100mA DC |
Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
SIP Version | |
Power Supply | PoE or 12VDC |
Power Consumption | -Idle:1.5W -Active:1.8W |
SIP Protocol | SIP 2.0 (RFC3261) |
Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
Communication Type | Full duplex |
Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
Ambient conditions | |
Protection Type | IP66 as per EN60529 |
Operating Temperature | -30°C to +70°C |
Storage Temperature | -40°C to +75°C |
﹄Features﹃
JR210-1B RED Outdoor emergency swimming pool phone with vandal-proof handset
﹄Applications﹃
JR210-1B RED Outdoor emergency swimming pool phone with vandal-proof handset
JR210-SC Hotline Telephone for Taxi Server more commonly used in parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.
﹄Customised Accessories﹃
JR210-1B RED Outdoor emergency swimming pool phone with vandal-proof handset
J&R provide LOGO printing and accessories customization services.
We will also provide suitable solutions according to the needs of customers.
HOOK FUNCTION: Magnetic hooks for choice
KEYBOARD SHAPE: Round buttons and square buttons for choice
INDICATOR LAMP COLOR: Red, yellow, blue, green for choice
MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice
HADSET CORD: Black curly handset cord or stainless steel spiral cord
If you have any custom requirements, please feel free to contact us.
