Openlucht van de de Telefoonnoodsituatie van de Sprekers Antivandaal Vrije de Intercomhanden

Basisinformatie
Plaats van herkomst: Shenzhen, China
Merknaam: J&R
Certificering: CE, FCC, RoHS, ISO9001
Modelnummer: Jr308-FK
Min. bestelaantal: 1 reeks
Prijs: US $239~US $349
Verpakking Details: Parelkatoen, Karton
Levertijd: 2-5 werkdagen
Betalingscondities: L/C, T/T
Levering vermogen: 3000 reeksen per maand
Gedetailleerde informatie
Materiaal: Roestvrij staal Garantie: 2 jaar
Weerbescherming: IP55-IP65 Handsfree: ja
Eenheidsgrootte: 150*200*50 (mm) Gewicht: 2 kg
Versie: Beschikbaar in Analogon, VoIP, GSM/3G Voeding: Telefoonlijn 12V gelijkstroom PoE
Hoog licht:

Anti de Noodsituatieintercom van de Vandaaltelefoon

,

Openlucht de Noodsituatieintercom van de Sprekerstelefoon

,

De Noodsituatieintercom van de handen Vrije Lift


Productomschrijving





Product Description

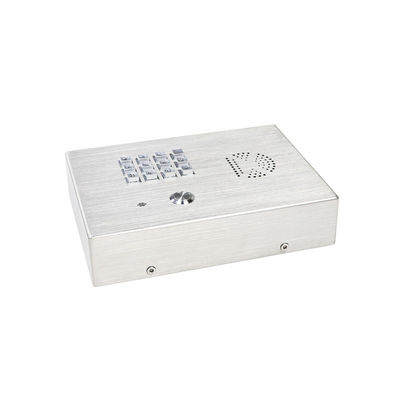

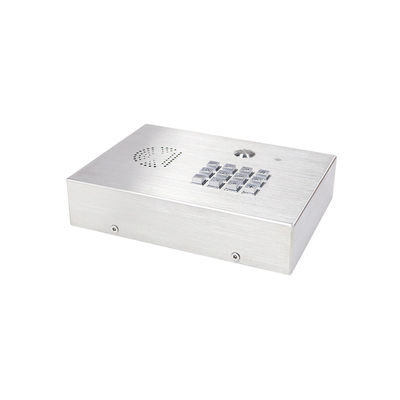

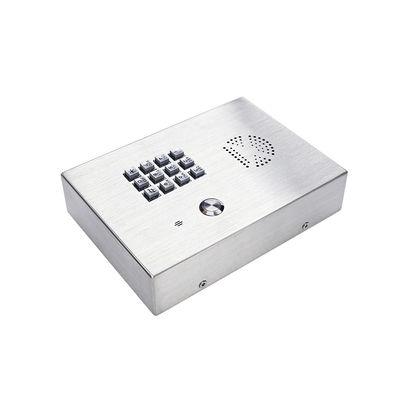

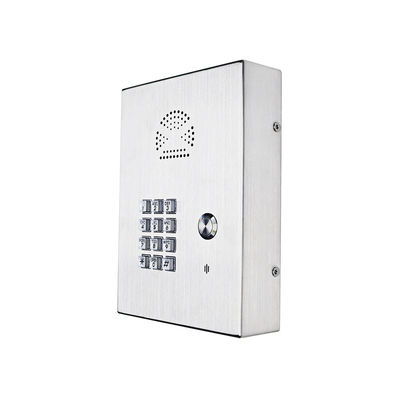

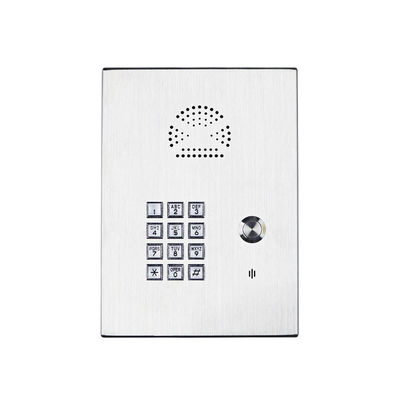

JR308-FK-IW Full keypad handsfree Outdoor Speaker anti vandal phone emergency intercom



J&R The Vandal Resist Emergency Telephone is based on a stainless steel faceplate and provide a clear handsfree, loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.



Casing Material Stainless steel body
Colors RED, YELLOW, GREY
Handset Material No handset
Keypad

Rugged metal keypad

(Push button: Stainless steel button with IP65 rate)

Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

Weather Resistance IP65
Ringing Tone Shrill warble tone 80 dBA at 1 metre typical
Hook switch No hook switch
M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
Weight Up to 2.5 kg depending on option





Openlucht van de de Telefoonnoodsituatie van de Sprekers Antivandaal Vrije de Intercomhanden 0















Technical Specification



Full keypad handsfree Outdoor Speaker anti vandal phone emergency intercom



重型,防破坏金属电话

坚固型电话,多功能电话



Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection Type IP 66 as per EN60529
Operating Temperature -30°C to +70°C
Storage Temperature -40°C to +75°C











Features



Full keypad handsfree Outdoor Speaker anti vandal phone emergency intercom



重型,防破坏金属电话





Stainless steel body - Strong impact resistance

Handsfree speakerphone - push button to connect rescue center

In wall mounting - simple installation

Vandal resistant full keyboard - can be programmed

Weather proof protection - up to IP65

Standard Analogue phone or SIP phone



Transients - Protection to ITU-T k.21 enhanced levels



CE,FCC,ROSH compliant - quality assurance



Flexible dial map, support hot-line















Applications



Full keypad handsfree Outdoor Speaker anti vandal phone emergency intercom



JR308-FK Cleanroom Telephone/Keyboard Telephone/Intercom Telephone Set is suitable for use in airport, hospital, bank, ATM, campus, lift/elecator , clean room, outside or outside building, etc.



坚固的户外防风电话











Packing & Delivery




Full keypad handsfree Outdoor Speaker anti vandal phone emergency intercom



Openlucht van de de Telefoonnoodsituatie van de Sprekers Antivandaal Vrije de Intercomhanden 5



Unit Size 200 *150 *52 (mm)
Carton Size 340 *235 *165 (mm)
Packaging Materials Pearl cotton, carton
Net Weight 2 KG
Gross Weight 3 KG



重型,防破坏金属电话



Port Shenzhen, Guangdong
Lead Time
(If you finish the payment today, your order will ship out within the delivery date.)
Quantity(Sets) 1 2-500 >500
Est. Time(Days) 2 25 To be negotiated











Our Services



Full keypad handsfree Outdoor Speaker anti vandal phone emergency intercom



重型,防破坏金属电话



ODM & OEM products or solutions



Sample order is greatly welcomed



We will reply your inquiry within 12 hours



Update the productive process and show the packing details



After delivered the goods, we will track the products for you once every two days, until you get the products.



When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.



J&R telephone is guaranteed for two years.











Our Company



Full keypad handsfree Outdoor Speaker anti vandal phone emergency intercom

重型,防破坏金属电话













FAQ



Full keypad handsfree Outdoor Speaker anti vandal phone emergency intercom



Q: Do you have any MOQ limit?

A: Low MOQ, 1pc is available



Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.



Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.



Q: What’s the quality standard of your products?

A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.



Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q: Can you produce a product in a color of my choosing?

A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.



Q: Do you provide an installation service?

A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.



Q: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new one with new order for small quantity.

For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.



Q: How about the shipping?

A: 1.Send by DHL / TNT / UPS / FEDEX / EMS,3-5days

2.Send by Air: Arrive at destination Airport fast then pick it up by yourself

3.Ship by Sea: Low shipping cost and slow delivery (15 - 30 days)
